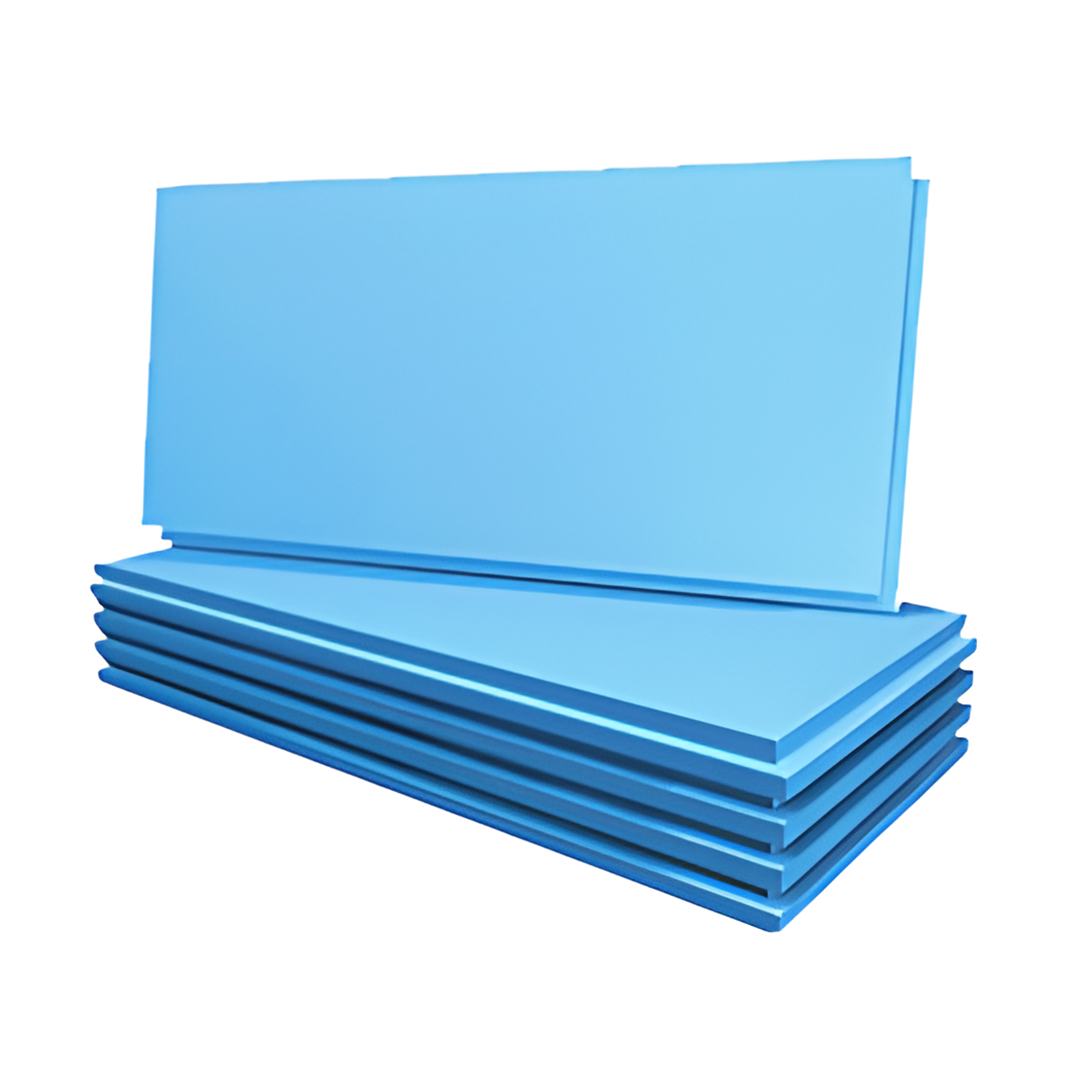

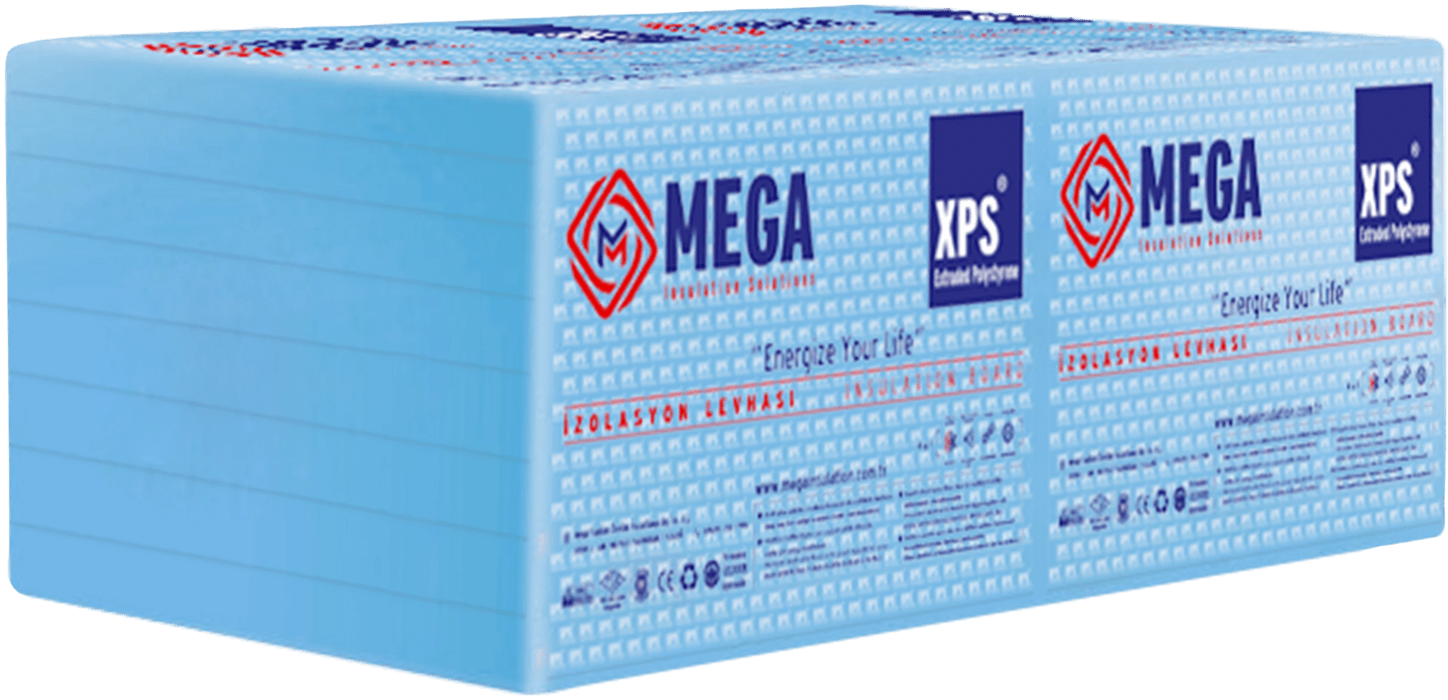

XPS - Flat Board

Type 1500 (150 kPa)	Type 2000 (200 kPa)
Type 2500 (250 kPa)	Type 3000 (300 kPa)

Mega Insulation Solutions Flat Surface XPS Sheets; as a result of the processing of polystyrene raw material by extrusion, the edge shape is produced with lamp bin and the surface shape is flat-armored. Mega Insulation XPS; It has a high level of water impermeability with its flat-armored surface shape and eliminates thermal bridges with its edge shape.

Mega Insulation XPS, which provides thermal insulation at the maximum level with its low thermal conductivity value, does not dissipate or crumble with its high compressive strength.

Usage Areas

Mega Insulation Flat Surface Sheets, due to their high compressive strength and especially waterproof properties.
Terrace roofs, subsoil curtain walls and foundation insulation in contact with the soil,
All kinds of exterior facades that do not require plaster are used for thermal insulation and especially in siding application,
Flooring, under-parquet and underfloor heating systems,
On hipped roofs, under the roof tiles and under the rafter,
On the sandwich walls,
In underfloor heating systems,
It is used in all kinds of prefabricated composite systems and double walls.

Since it has high thermal insulation values, it can be used in thinner thicknesses thus it saves labor and space by using it.
